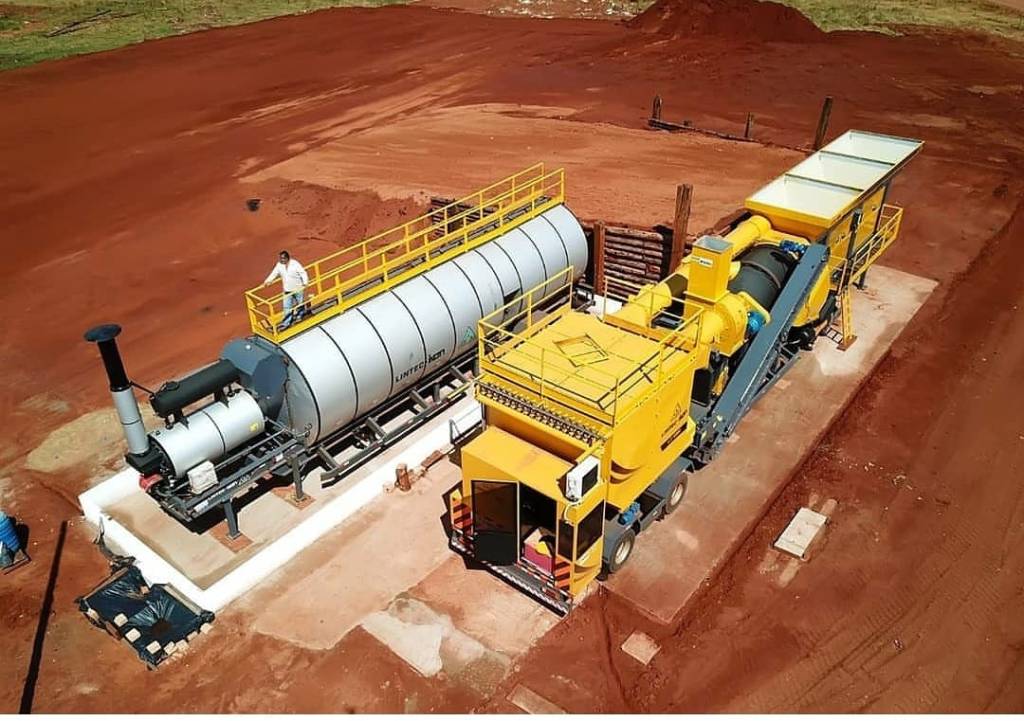

MOBILE CONTINUOUS ASPHALT MIXING PLANT

Counterflow mobile asphalt mixing plant with external mixer for production of high quality asphalt mixtures. This mobile plant has production capacity range of 50 ton per to 160 ton per hour different models. It is fully automated, which enables wide range emission of reports and remote access by the factory to check failures, diagnoses or program updates. This equipment is of quick building and low maintenance cost. There is the possibility of this plant in a single chassis or chassis doser + chassis plant.

Technical description:

– Mobile chassis for the plant
– Mobile chassis for the aggregates doser
– 04 feed bin of 7,5m³ each one

– Individual dosage conveyor for each silo with weigh bridge;
– Counterflow dryer with internal fins bolted fixing ring/body
– Burner with automatic actuation;
– External mixer type twin shaft;
– Drag elevator type Redler;
– Pulsating filtering system. The bag filter has a large filtration area;
– Ready mix silo 1m³;
– Full automatic control system by supervisory or manual;
– Mobile tanking system standard 60.000 liters (40.000 L Bitumen + 20.000 L Fuel);
– Acclimatized cabin.

Optional
– Optionally we provides ready mix silo 25 or 50t.

– Cold Recycling Asphalt Feeder (RAP) up to 15%;

– Filler/fiber feeder;

– Bitumen Flow meter;
