Brief description
The Pothole patchers are mainly used for treatment of damage of highway, general roads and municipal roads such as potholes, cracking, subsidence, slurry and other daily damage, and used for road maintenance operations as well ,which have fast repair and fast traffic recovery advantages.

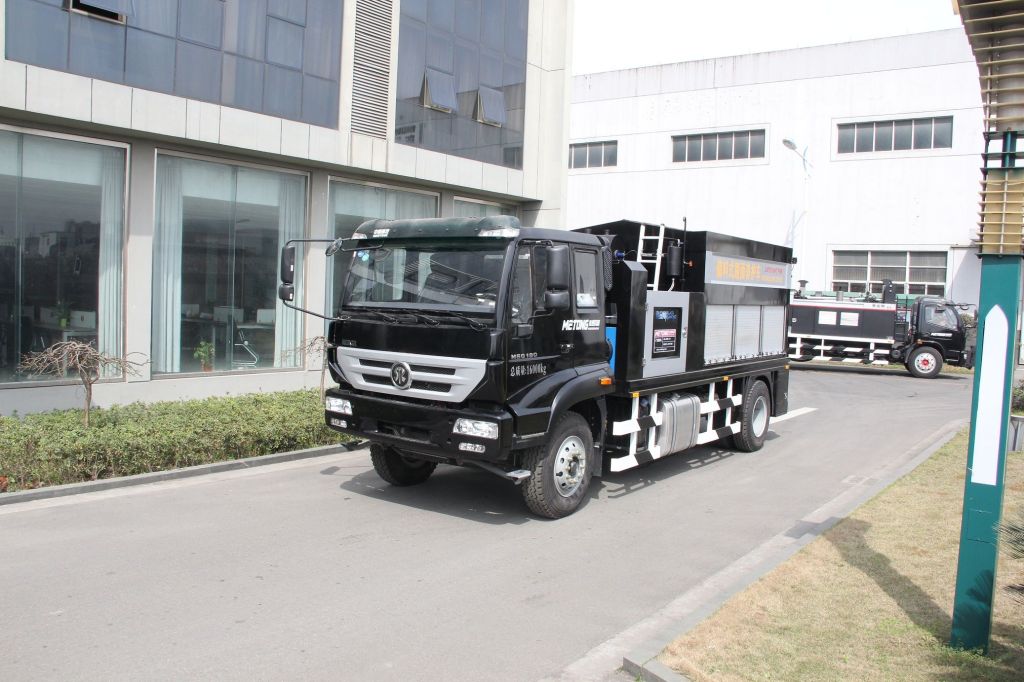

Pothole Patcher Maintenance Truck with heat preservation function is mainly composed of heat preservation bin, asphalt tank and heat transfer heating system. It adopts the car chassis in the second degree.
- The heat of the truck bin could be preserved by combing both heat transfer oil and gas. Its high heat efficiency could satisfy your demand of long-distance asphalt transport.
- The heat preservation bin is equipped with hydraulic device to easily open/close the roof door. Asphalt mixture could be discharged through rotary at a controlled speed. There is an agitator installed in the bin for breaking the arch of asphalt mixture.
- The tank surface material is the stainless steel. The thermal-protective coating is made of aluminum silicate. The asphalt tank and pipeline have good heat preservation performance since the truck adopts the heat transfer oil system. The pipeline is not easy to block.
It is safe and reliable to adopt the working equipment driven by the hydraulic pressure. The generator set with high capacity could supply power to the heat transfer oil system and other construction tools to adapt to various construction conditions.
| Pothole Patcher | |||
| Basic data | |||
| Parameter | （kg）full weight | 18000 | |
| Silos capacity（m³） | ≥6 | ||
| Silos wall temperature（℃） | 180 | ||
| Tempt reservation range（℃） | 120-160 | Can be reset | |
| Chassis | Model | DFH1180EX8 | |
| （kW） Engine power | 154（2300rpm） | ||
| Dive mode | 4X2 | ||
| Wheelbase（mm） | 4500 | ||
| Tare weight（kg） | 7805 | ||
| Max.speed （km/h） | 89 | ||
| Emission standard | Tier 6（6.2L displacement） | ||
| Burner | Model | G20 | RIELLO 40 series |
| Fuel | |||
| Burning power （kW） | 95～213 | ||
| Pilot Generator | Power（kW） | 5 | |
| Voltage | 220v | ||
| Outlet mouth | |||
| Heater(hot oil heating system) | Heating power （kW） | 3 | 3 |
| Heater size （mm） | Φ400*1000（0.4L） | ||
| Hot oil Max.working temp. | 180 | ||
| Hot oil Max. pressure （Mpa） | 0.15 | ||
| Flow（m³/h） | 20 | ||
| Hot oil circulation | Raise（m） | 8 | |
| Rotary（r/min） | 2800 | ||
| Power（kW） | 0.75 | ||
| Alarm warning | Arrow light |
